HOLLOW METAL DOORS

COMMERCIAL AND INDUSTRIAL HOLLOW METAL DOORS

Hollow Metal Doors are fabricated of channel reinforced sheet steel and filled with insulation materials such as polystyrene. Standard hollow metal doors are 1 3/4” thick and are prime coat painted (gray). Finish is suitable for painting.

Hollow Metal Doors are shown to have superior performance for strength and durability compared to the alternate materials. Steel can withstand more abuse, is more sanitary, and easier to maintain than wood, aluminum, and fiberglass. Because of their strength and durability, steel doors have the lowest total cost of ownership of any other materials.

We only provide metal doors from manufacturers that meet the strict guidelines of the Steel Door Institute (SDI).

Replacement Doors available with hinge spacings from all manufacturers, including:
Steelcraft • Curries • Ceco • Republic • Mesker • Pioneer

STANDARD HOLLOW METAL DOOR DESIGNS

Standard door designs shown below. Custom designs available upon request.

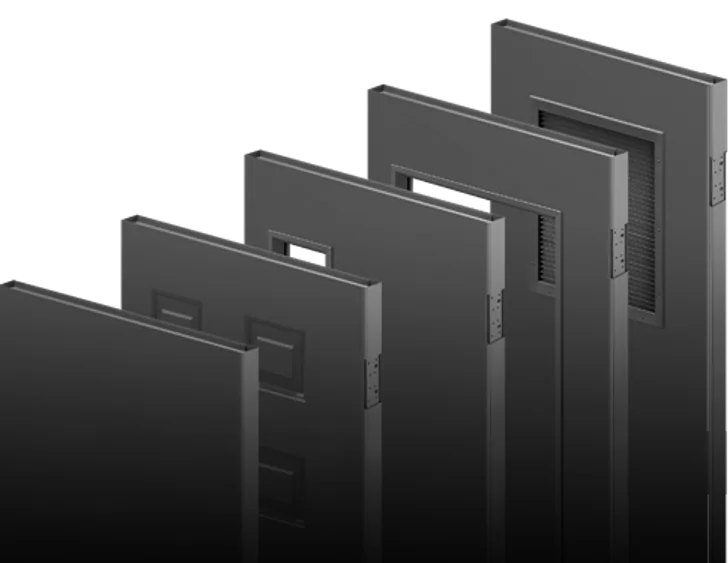

HOLLOW METAL DOOR STYLES

CUTAWAY DETAILS

COMMERCIAL AND INDUSTRIAL HOLLOW METAL DOORS

Heavy Duty – Most Popular Model

  • 18 Gauge – Cold Rolled or Galvanized Steel
  • 1 3/4” Thick
  • Full Body Polystyrene Insulated Core
  • Non- Handed Design
  • Seamless Filled Edges
  • Closer Reinforcement
  • Hinge Reinforcement- Reversible
  • Flush Top Cap – Galvanized
  • Inverted Bottom Cap – Galvanized
  • Prime Painted Gray- Epoxy Factory Applied, Baked On
  • Standard Lock Preps Include 161 (Cylindrical Lock) , Fed 86 Edge (Mortise Lock), Deadbolt Lock, Panic Bar Reinforced
  • Prepared for Continuous Hinge Application
  • WHI / ITS up to 3 hour, Positive Pressure and “S” Smoke included
  • Meets or Exceeds Standards for ANSI 250.4 and ANSI 250.8

STANDARD HOLLOW METAL DOOR GRADES AND MODELS

Defined by Steel Door Institute (SDI)

LEVEL 1 STANDARD DUTY

20 gauge
1-3/8″ or 1¾” Thick Door
Model 1: Full flush
Model 2: Seamless

LEVEL 2 HEAVY DUTY

Most Popular Model (see above)
18 gauge
1¾” Thick Door
Model 1: Full flush
Model 2: Seamless

LEVEL 3 EXTRA HEAVY DUTY

16 gauge
1-3/4″
Model 1: Full flush
Model 2: Seamless

LEVEL 4 MAXIMUM DUTY

14 gauge
1-3/4″
Model 1: Full flush
Model 2: Seamless

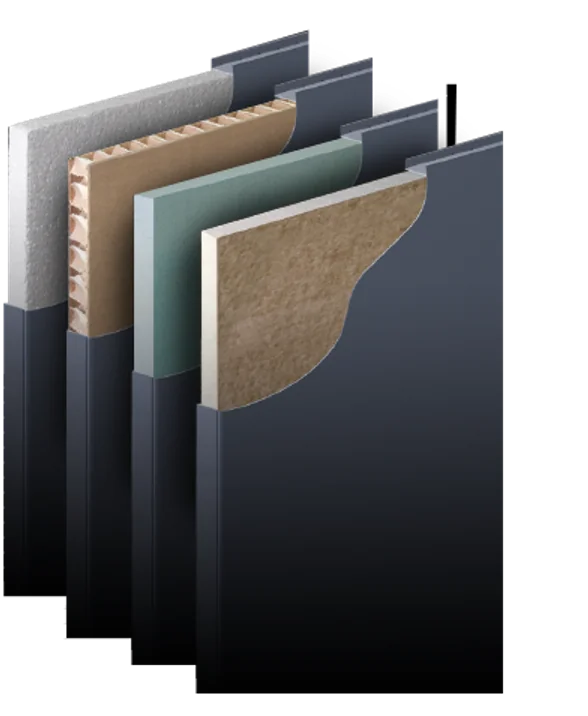

HOLLOW METAL CORE TYPES

Honeycomb • Polystyrene • Polyurethane • Steel Stiffened • Temperature Rise Core

DOOR LITES

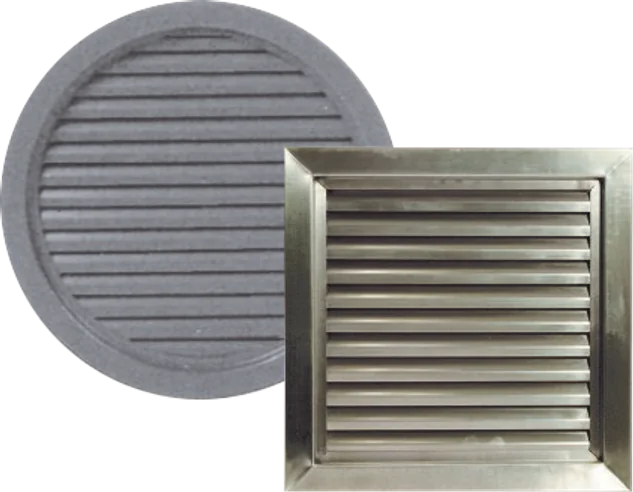

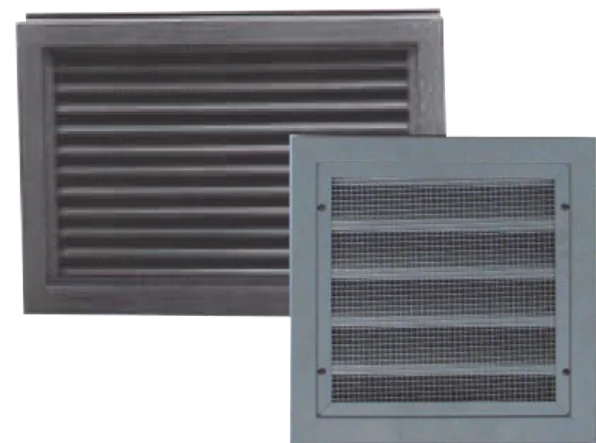

DOOR LOUVERS
